2023-211 - Temporal Sensing Approach using Digital Strain Sensors

Description:

2023-211 Bio-Inspired Digital Strain Sensor: Advanced Micro-Electro-Mechanical Systems (MEMS) Technology for Rapid and Precise Sensing Solutions

Benefit

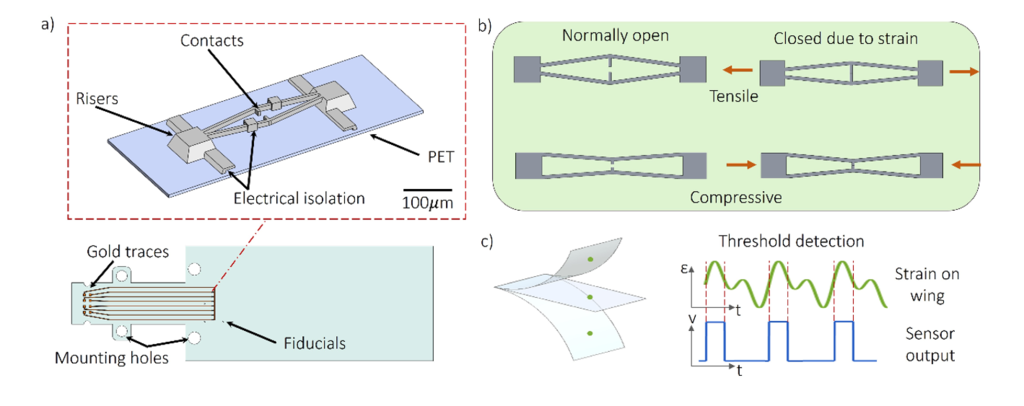

Precision and Reliability: The ohmic-based contact switch activates at a specific strain threshold, ensuring precise and reliable detection. This is crucial for applications like structural health monitoring and aerospace engineering.

Superior Signal Quality: The digital strain sensor offers a high signal-to-noise ratio, with outputs that can be directly sampled. This eliminates the need for extra amplification hardware and complex signal conditioning, resulting in cleaner, more accurate data.

Cost and Efficiency: The fabrication process includes two-photon polymerization 3D printing, gold layer addition, and UV laser ablation for electrical isolation. This method is innovative, reducing production costs and speeding up manufacturing.

Mechanical Amplification: Beams suspended off a flexible PET substrate mechanically amplify small displacements into larger movements. This enhances sensitivity, allowing for the detection of minor strain variations in dynamic environments.

Lightweight and Compact: Advanced fabrication techniques reduce the need for bulky hardware, making the sensors lightweight and compact. This is ideal for applications where weight and space are limited, such as unmanned aerial vehicles (UAVs) and wearable technology.

Market Application

Unmanned Aerial Vehicles (UAVs)
- The sensor's lightweight and flexible design make it ideal for integration into UAV wings to monitor strain and detect disturbances like wind gusts.
- This can enhance flight stability and control, leading to more reliable and responsive UAVs.
Health Monitoring
- Flexible and wearable sensors can be applied to monitor physiological parameters such as muscle strain or joint movement.
- Can be used in medical devices for patient monitoring, rehabilitation, and fitness tracking.
- Applications include smart clothing, sports gear, and other wearable tech designed to enhance user experience and performance.
Humanoid and soft robotic
- These sensors can provide tactile feedback and monitor structural integrity.
- Can improve the interaction between robots and their environments, making them more adaptive and sensitive.
Aerospace Engineering
- To monitor the structural health of aircraft components. This includes detecting strain and stress in wings and other critical parts, contributing to preventive maintenance and safety
Industrial Automation
- Use in industrial machinery to monitor strain and stress for predictive maintenance.
- Reduces downtime and increases operational efficiency through early detection of potential failures.
